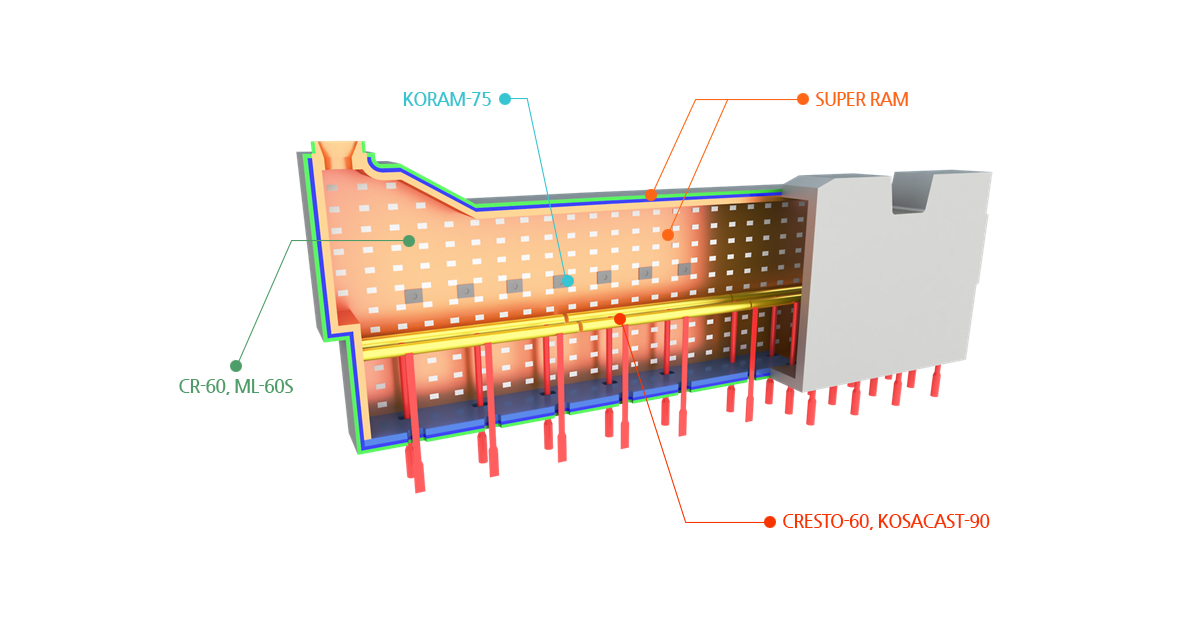

echnical data of Walking Beam Reheating furnace

ITEM CR-60 ML-60S
Bulk Density 2.48 2.60
Apparent Porosity (%) 24.5 16.2
CCS (MPa) 70 60
Chemical
Composition
(%)
Al2O3 60 60
Application Part Ceramic Anchor
ITEM CRESTO-60 KOSACAST-90 SUPER RAM KORAM-75
Dry Material Required for Estimating
(Ton/m³)
2.65 2.80 2.40 2.74
CCS (MPa) 110℃ 60 40 4 -
1,500℃ 90 50 10 -
MOR (MPa) 110℃ - - - 7.7
1,400℃ - - - 15.1
Chemical
Composition
(%)
Al2O3 60 90 40 75
SiO2 27 5 55 -
Application Part Skid Pipe Working Lining Burner
