Applcation

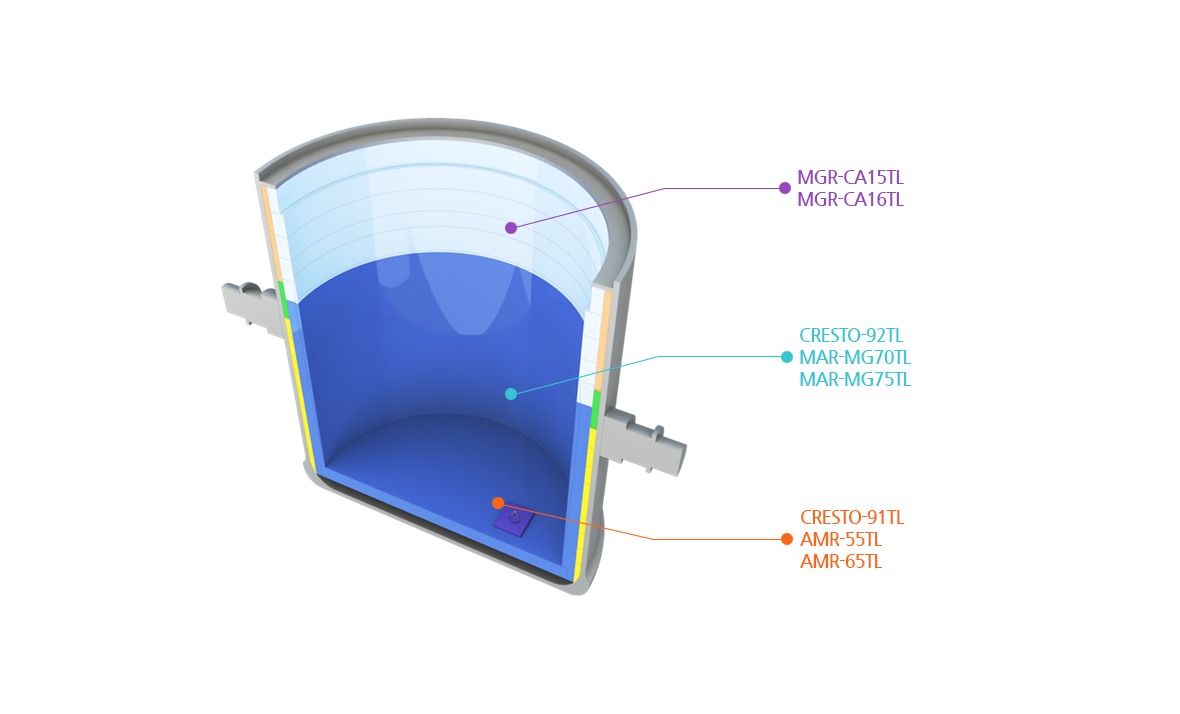

Technical data of Steel Ladle

ITEM CRESTO-91TL CRESTO-92TL
Bulk Density 110℃ 3.11 3.23
1,500℃ 2.92 3.19
MOR (MPa) 110℃ 7 5
1,500℃ 22 29
PLC (%) 110℃ -0.03 -0.03
1,500℃ 2.05 0.00
Chemical
Composition
(%)
Al2O3 91 92
MgO 6 5
Application Part Bottom Metal Zone
ITEM MGR-CA15TL MGR-CA16TL AMR-55TL AMR-65TL MAR-MG70TL MAR-MG75TL
Bulk Density 3.05 2.98 3.25 3.30 3.05 3.15
Apparent Porosity (%) 2.5 2.7 3.5 3.5 3.0 2.5
CCS (MPa) 45 41 45 45 50 50
Chemical
Composition
(%)
MgO 77 76 30 20 70 75
Al2O3 - - 55 65 15 10
F.C 15 16 10 10 10 10
Application Part Slag Line Bottom/Metal Zone
