Applcation

Technical data of Blast Furnace

ITEM HX-34HD ML-70S CR-60P AZ-25P
Bulk Density 2.25 2.70 2.60 3.34
Apparent Porosity (%) 14.2 16.1 16.2 6.5
CCS (MPa) 55 90 140 195
Chemical
Composition
(%)
Al2O3 43 70 65 59
SiO2 54 26 30 -
ZrO2 - - - 25

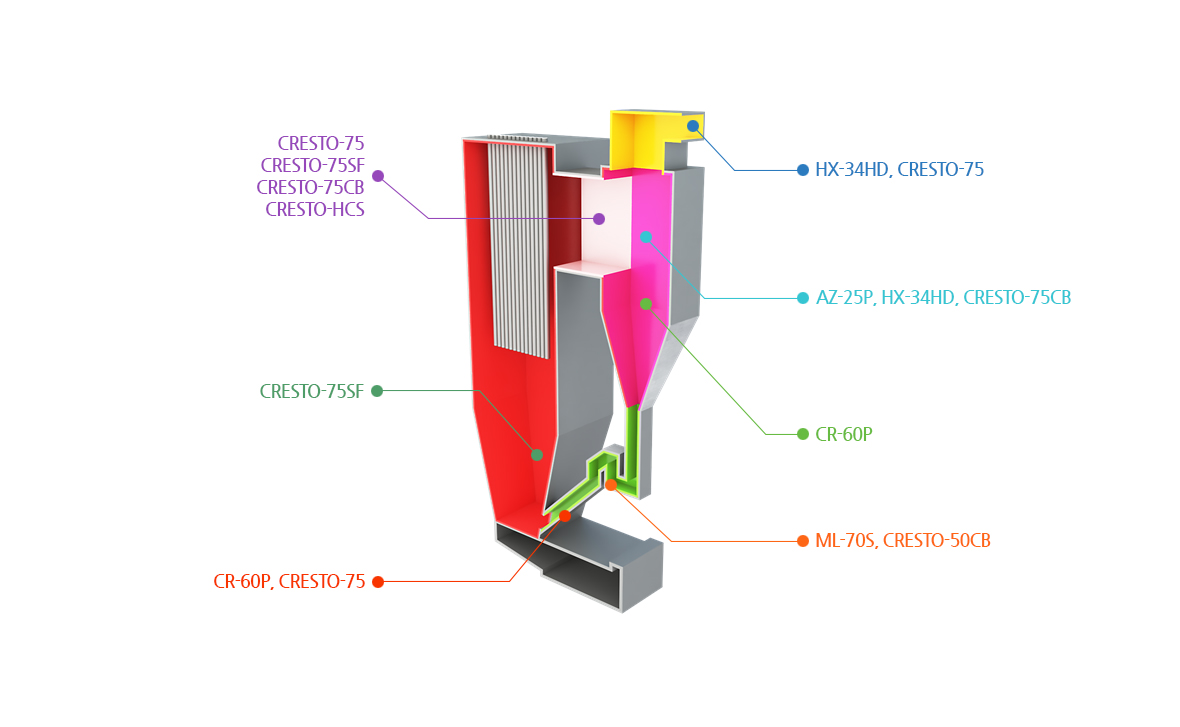

Application Part Cyclone Loop Seal Cyclone Cyclone Target Zone
ITEM CRESTO-50CB CRESTO-75 CRESTO-75SF CRESTO-75CB CRESTO-HCS
Dry Material Required for Estimating
(Ton/m³)
2.40 2.75 2.75 2.80 2.85
CCS (MPa) 110℃ 60 70 70 75 75
815℃ 80 90 90 100 100
PLC (%) 110℃ -0.05 -0.05 -0.05 -0.05 -0.05
815℃ -0.20 -0.10 -0.10 -0.10 -0.10
Chemical
Composition
(%)
Al2O3 50 75 75 75 72
Application Part Loop Seal Cyclone, Inlet Duct, Furnace
>
